产品用途:产品适用于煤矿井下额定电压0.6/1KV及以下输配电线路。 Scope of application:The product is suitable in coal mine mine shaft rated voltage 0.6/1KV and below loses the distribution line 执行标准 Standards implemented: MT 818-1999 |
型号名称及使用范围 Model descriptions and Use scope
|
型 号 Model |
名 称 Descriptions |
使 用 范 围 Scope of application |
|
MVV |
煤矿用聚氯乙烯绝缘聚氯乙烯护套电力电缆 PVC insulated PVC sheathed power cables for use in mines |
矿井中电能传输线路但不能承受机械外力作用 Energy transmission linebut not mechanical impact in mines |
|
MYJV |
煤矿用交联聚乙烯绝缘聚氯乙烯护套电力电缆 XLPE insulated PVC sheathed power cables for use in mines |
矿井中电能传输线路但不能承受机械外力作用 Energy transmission linebut not mechanical impact in mines |
|
MVV22 |
煤矿用聚氯乙烯绝缘钢带铠装聚氯乙烯护套电力电缆 PVC insulated steel tape armored PVC sheathed power cables for use in mines |
矿井中电能传输线路能承受一定机械外力 Energy transmission linecan bearing mechanical impact in mines |
|
MVV32 |
煤矿用聚氯乙烯绝缘细钢丝铠装聚氯乙烯护套电力电缆 PVC insulated fine steel wire armored PVC sheathed power cables for use in mines |
矿井中电能传输线路能承受一定的拉力 Energy transmission linecan bearing some full in mines |
|
MYJV22 |
煤矿用交联聚乙烯绝缘钢带铠装聚氯乙烯护套电力电缆 XLPE insulated steel tape armored PVC sheathed power cables for use in mines |
矿井中电能传输线路能承受一定机械外力 Energy transmission linecan bearing mechanical impact in mines |
|
MYJV32 |
煤矿用交联聚乙烯绝缘细钢丝铠装聚氯乙烯护套电力电缆 XLPE insulated fine steel wire armored PVC sheathed power cables for use in mines |
矿井中电能传输线路能承受一定的拉力 Energy transmission linecan bearing some full in mines |
|
MYJV42 |
煤矿用交联聚乙烯绝缘粗钢丝铠装聚氯乙烯护套电力电缆 XLPE insulated coarse steel wire armored PVC sheathed power cables for use in mines |
矿井中电能传输线路能承受较大的拉力 Energy transmission linecan bearing bear full in mines |
注：XLPE绝缘比PVC绝缘具有绝缘强度高，抗老化，耐化学腐蚀及防水性能等优点
XLPE insulation strength the PVC insulation to be higher than the anti-aging bears merits and so on chemistry corrosion and waterproof performance.
电缆规格 Specifications
|
型 号 Model |
芯 数 Core number |
额定电压(KV) Rated voltage |
标称截面 mm2 Nominal sectional | |
|
主线芯 Master core |
中性线芯(第四根芯) Neutrality core | |||
|
MVV MYJV |
3 |
0.6/1 |
1.5-185 |
- |
|
MVV22 |
2.5-185 | |||
|
MYJV22 |
4-185 | |||
|
MVV32 MYJV32 MYJV42 |
4-185 | |||
|
MVV MVV22 |
3+1 |
0.6/1 |
4-185 |
2.5-95 |
|
4 |
4-185 | |||

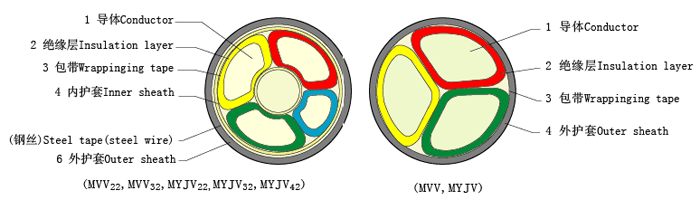

电缆结构示意图 IIIustration of cable structure
使用特性 Service characteristics
| 电缆导体的最高额定温度 Electric cable conductor Max. rated temperature |
XLPE绝缘90℃， PVC绝缘70℃ XLPE insulation90℃ PVC insulation70℃ |
| 电缆敷设时的环境温度 Cable laying environment temperature |
≥0℃ |
| 短路时电缆导体的最高温度(持续时间≤5S) Short circuit electric cable conductor max. temperature |
XLPE绝缘≤250℃， PVC绝缘≤160℃ XLPE insulation≤250℃PVC insulation≤160℃ |
| 电缆的最小弯曲半径 Minimun bending radius |
为电缆弯曲试验用圆柱直径的2倍 Uses the column diameter for the electric cable bend test 2 times |
电缆主要技术性能 Major technical performances
1、 电缆导体直流电阻及绝缘电阻 Cable conductor DC resistance and insulated resistance
|
型 号 Model |
标称截面 (mm2) nominal sectional |
+20℃导体直流电阻(≤Ω/Km) DC resistance of the conductor at 20℃ |
+20℃绝缘电阻常数(≥MΩ.Km) Insulation resistance at 20℃ |
|
MVV MVV22 MVV32 MYJV MYV22 MYJV32 MYJV42 |
1.5 |
12.1 |
36.7 |
|
2.5 |
7.41 | ||
|
4 |
4.62 | ||
|
6 |
3.08 | ||
|
10 |
1.83 | ||
|
16 |
1.15 | ||
|
25 |
0.727 | ||
|
35 |
0.524 | ||
|
50 |
0.387 | ||
|
70 |
0.268 | ||
|
95 |
0.193 | ||
|
120 |
0.153 | ||
|
150 |
0.124 | ||
|
185 |
0.991 |
2、电缆其它主要技术性能 Other major technical performances
(型号Model:MKVV22、MKVV32、MKVV42、MKVV、MKVVR、MKVVP、MKVVP2、MKVVRP)
|
序 号 Serial number |
项目 Items |
技术性能 Technical performances | |
|
1 |
+20℃时导体直流电阻(≤Ω/Km) Conductor DC resistance at 20℃ |
见上表 See above table | |
|
2 |
+20℃时绝缘电阻的常数(≥MΩ·Km) Insulation resistance at 20℃ |
见上表 See above table | |
|
3 |
5min工频交流电压试验 5min power frequency alternating current pressure test |
芯-芯 Core-Core 芯-铠装 Core-Armor |
3500V不击穿 3500V no breakdown |
|
4 |
4h交流高压试验 4h AC high voltage test |
2400V不击穿 2400V no breakdown | |
|
5 |
单根垂直燃烧试验 Single wire burning test |
MT386 | |
|
6 |
成束燃烧试验 Group burning test |
符合GB/T18380.3标准中B类成束燃烧试验要求 Conforms to GB/T18380.3 standard B kind group burning test | |
